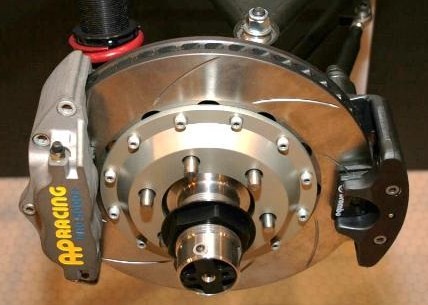

Introduction - Suspension Upgrades - Stage 4 - Pedal Box Stage 4 Steven Hibbert's MP95 Kit Components: Stage 2 Components Full car set of AP Racing Brakes Front and Rear Uprights Centre Locking Wheels (Option) Stage 4 is a conversion from a road Lotus to a full racecar, while again still remaining road legal. There is also the option of a handbrake. The kit is designed for maximum rigidity to give the car maximum traction and handling. New Wishbone Suspension As with stage two, all Lotus wishbones are replaced by Pilbeam’s racing suspension. A stiffer front anti roll bar can also be supplied. Uprights Front and Rear Uprights These are much lighter than the Lotus originals and are CNC machined from a solid aluminium block to greatly increase rigidity. The bearing carrier is now incorporated within the upright reducing the required components and fixings, reducing weight and increasing stiffness still further. The uprights solve the common problems with bearings that often trouble Lotus customers. Recent developments with a Lotus have allowed Pilbeam Racing to develop our existing uprights further still. Bearing size is increased to cater for high performance use such as racing and track days. Brakes Mounted AP Racing Brakes As well as wanting cars to go fast we like them to stop quickly too, and this task is trusted to a full set of AP brake discs and callipers, using 315 mm front and 295 rear discs. Brake ducts and wheel speed sensors can be fitted, with a handbrake mount as an option. Centre Locking Wheels For the professional racer a modification can be made allowing for centre locking wheels. This allows quick wheel removal by using the large centre nut. For further information or to arrange a quote please contact Pilbeam Racing Designs: info@pilbeamracing.co.uk +44(0)1778 424838
